AC Coupling Capacitor Products
| Parameter | Product | |||||
|---|---|---|---|---|---|---|
| EA10-0603 | EA10-1207 | |||||
| Capacitance | 65 nF ± 15% | 100 nF ± 15% | ||||
| Chip Size |
0.6 x 0.3 mm2 (0201) |
1.2 x 0.7 mm2 (0402) |
||||
| Operating Temperature | -55°C to 150°C | |||||
| Storage Temperature | -70°C to 165°C | |||||
| TCC | < 1.0 %/K | |||||
| VCC | < 1.0 %/V | |||||
| Rated Voltage | 3.8 V | |||||
| Breakdown Voltage | 10 V | |||||

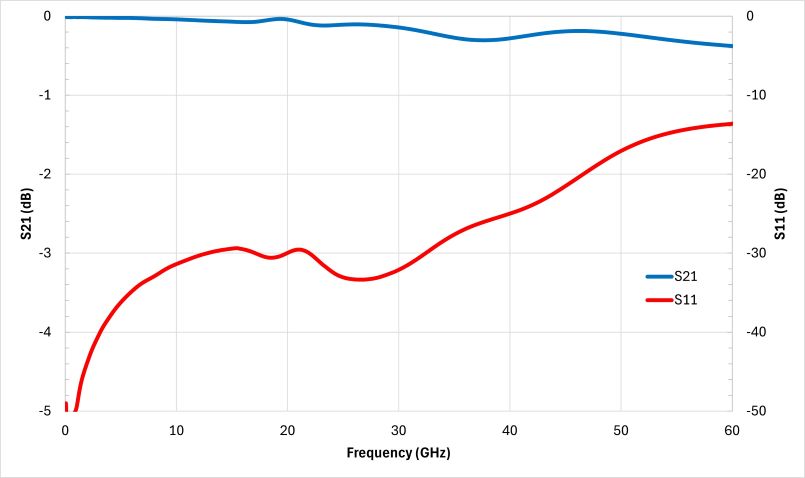

| Insertion Loss (IL) | @20GHz, 25°C | 0.2 dB | 0.2 dB | |||
| @40GHz, 25°C | 0.4 dB | 0.4 dB | ||||
| @60GHz, 25°C | 0.6 dB | 0.6 dB | ||||
| Return Loss (RL) | Up to 60GHz, 25°C | 12 dB | 12 dB | |||
| Capacitor Height | 105 um on Au Pad (140 um on SnAg) | |||||
| Lead Time to Sample | 10 weeks | |||||
| Mounting Method | Solder Mounting, Wire Bonding | |||||
|
